Offshore Project

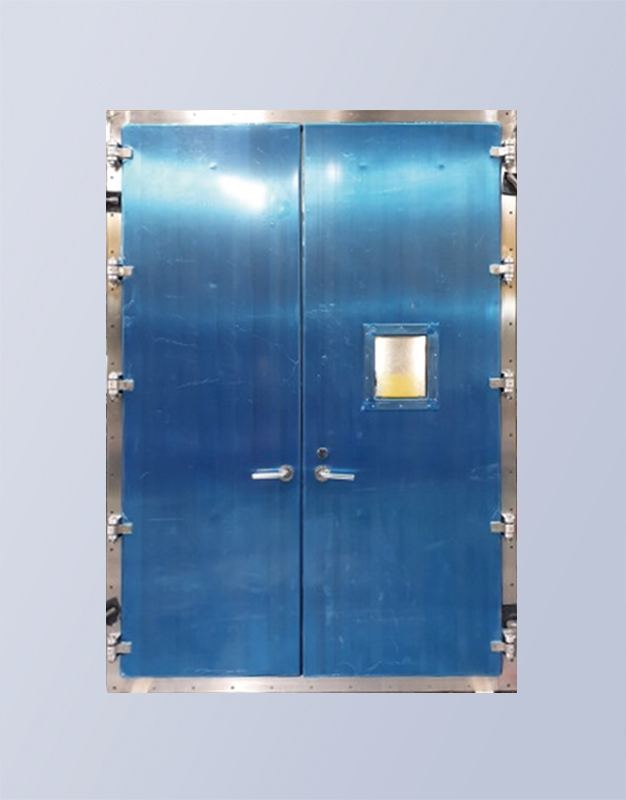

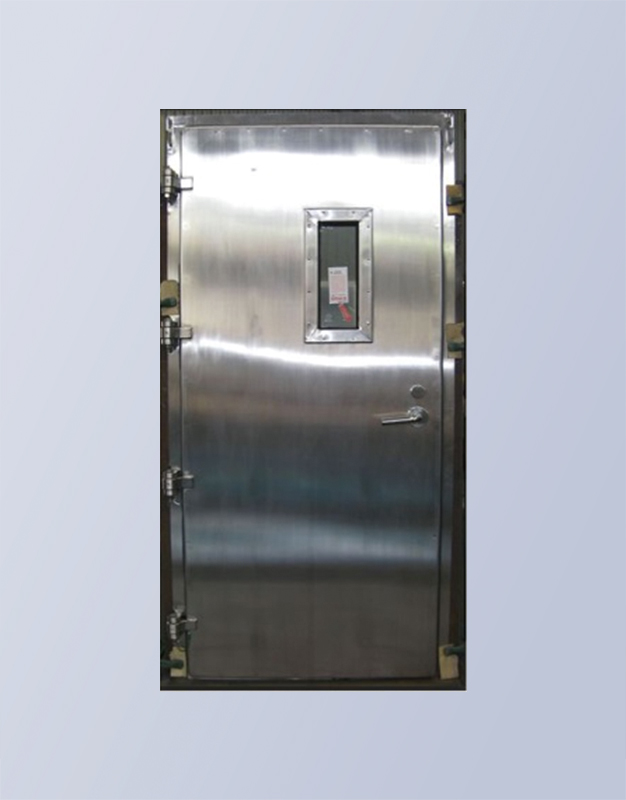

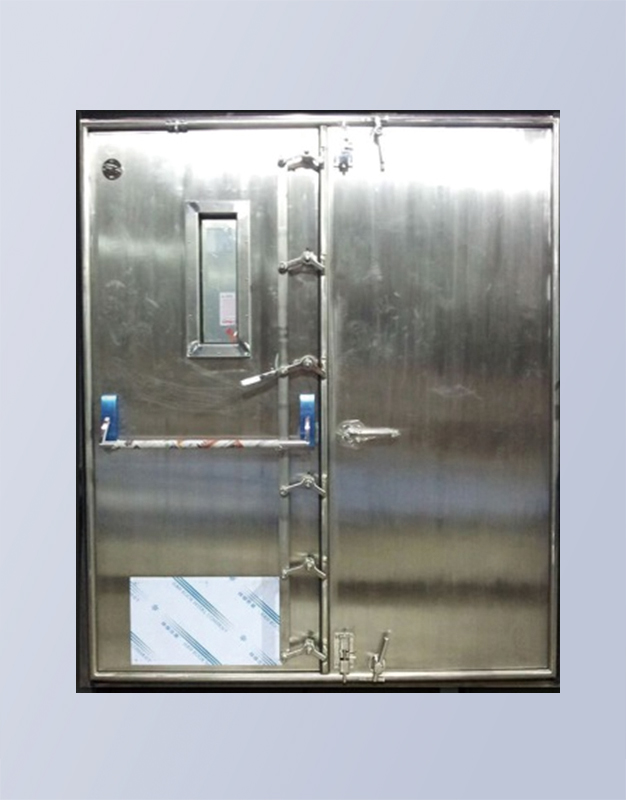

J60,H120 & A60 class fire resistance Weather & Gastight Door with Blast proof.
ES Tech manufactures and supplies fireproof external and internal doors for offshore projects. In November 2023, ES Tech successfully passed the J60 fire test based on ISO 22899-1:2021, becoming the first company in the world to achieve this. The J60 Fire Door, certified with an ABS Type Approval, was officially supplied in early 2024. The J60 door shares the same structure as the H120 class door, both meeting FTP Code MSC.307(88) standards.
While H-class withstands higher temperatures than A-class, both ensure superior fire resistance. Defined as the “Z-Frame Door,” the design features three seals (two rubber and one ceramic) attached to the Z-shaped frame and blade—providing both fireproof and weathertight performance.
Additionally, seal tightness and panic bar operation have been further improved for enhanced safety and functionality.
Specification
◎ Fire Grade : J60 / H120 / A60
◎ Maximum Dimension :
– A class : 3000mm x 4000mm with transom
– H class : 4000mm x 4000mm without transom
– J class : 4000mm x 4000mm without transom
◎ Type : Single & Double Leaf Door
◎ Blast proof : 2 bar / 0.5 bar
◎ Sound Reduction : 40dB ~ 46dB.
◎ Material : Carbon steel & Stainless steel.
◎ Operating System : 3 Latch type.
◎ Option : Lock system, Self closer, Windy breaker, Vision panel,
Panic bar, Kick plate, Eye Brow.
◎ Certificate : ABS Type Approved certificate, MED certificate.
* J60, H120 Class is excluded by MED certificate.

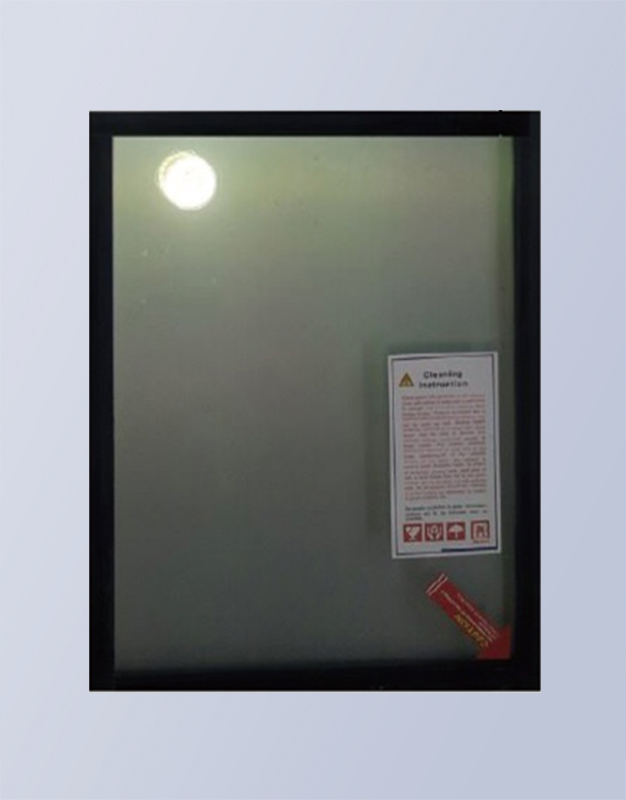

A & H class fire resistance Window
ES Tech designs and manufactures fireproof windows for offshore vessels, ensuring safety and performance in demanding marine environments.
Both A-Class and H-Class windows comply with FTP Code MSC.307(88) standards, with H-Class offering superior resistance to higher temperatures.
These windows also provide excellent sound insulation and blast resistance while maintaining full fire protection.
An optional electric heating system is available to enhance visibility and prevent fogging under harsh weather conditions.
Specification
◎ Fire Grade : A0 / A60 / H120
◎ Maximum Dimension :
– A0 class : 1500mm x 2000mm x 51T
– A60 class : 1465mm x 965mm x 51T
– A60 class : 1600mm x 1350mm x 51T
– H class : 1500mm x 1000mm x 105T
◎ Type : Fixed Type only
◎ Blast proof : 2 bar (H120 class), 0.5BAR(A60 class)
◎ Sound Reduction : 55dB(H120 class), 56dB(A60 class)
◎ Material : Carbon Steel & Stainless steel
◎ Option : Heated Glass, wiper, etc
◎ Certificate : ABS Type Approved certificate, MED certificate.
